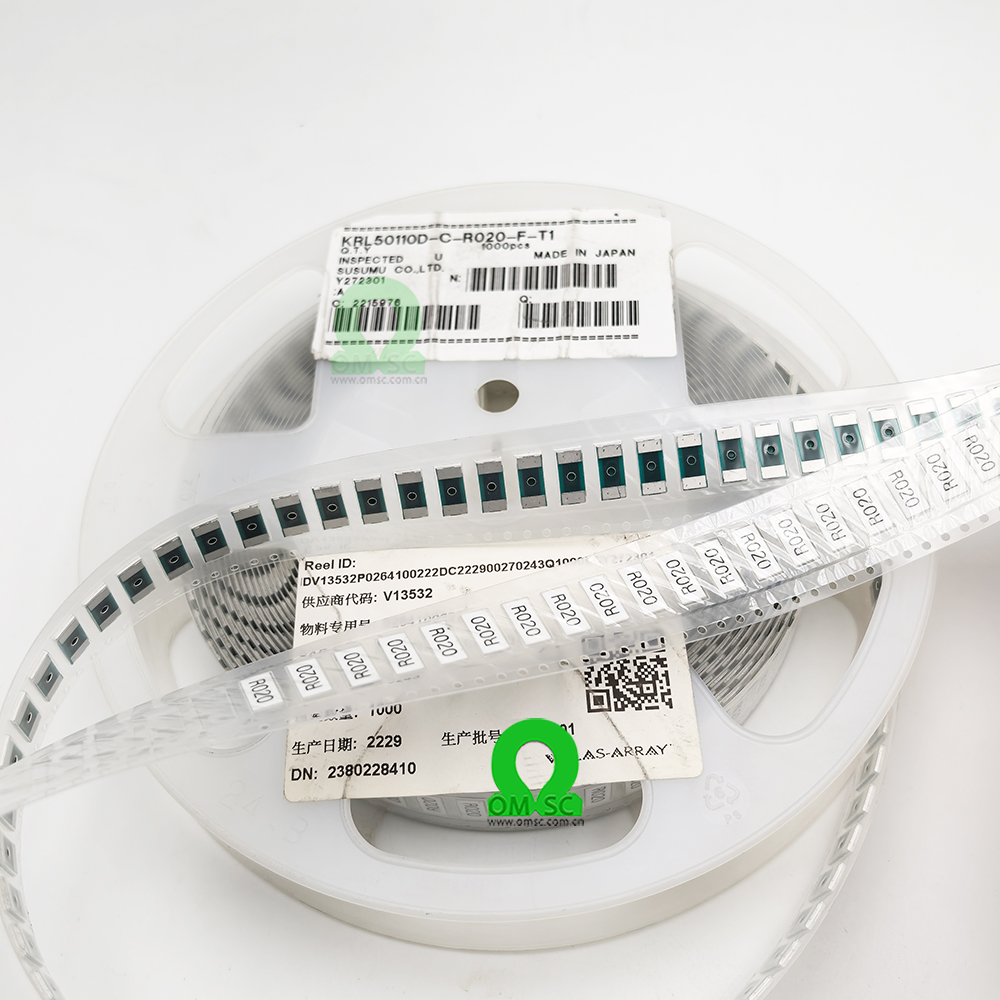

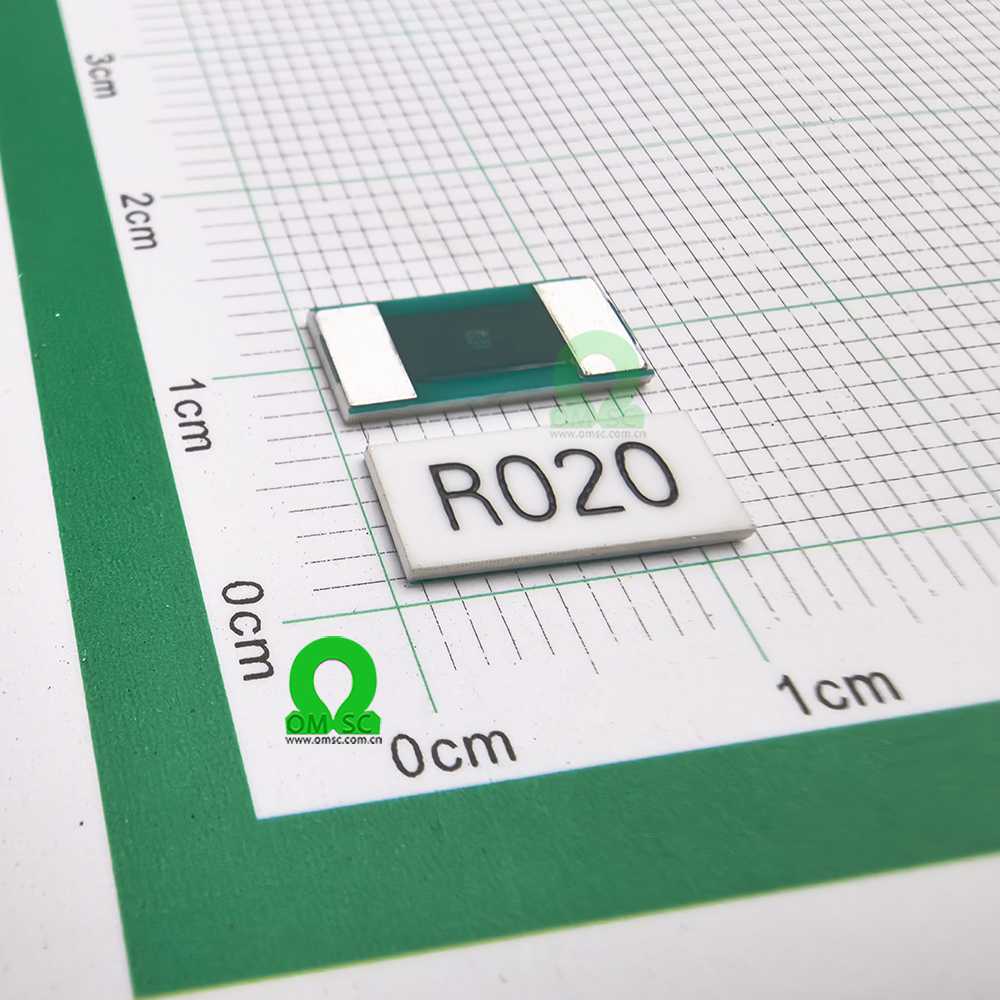

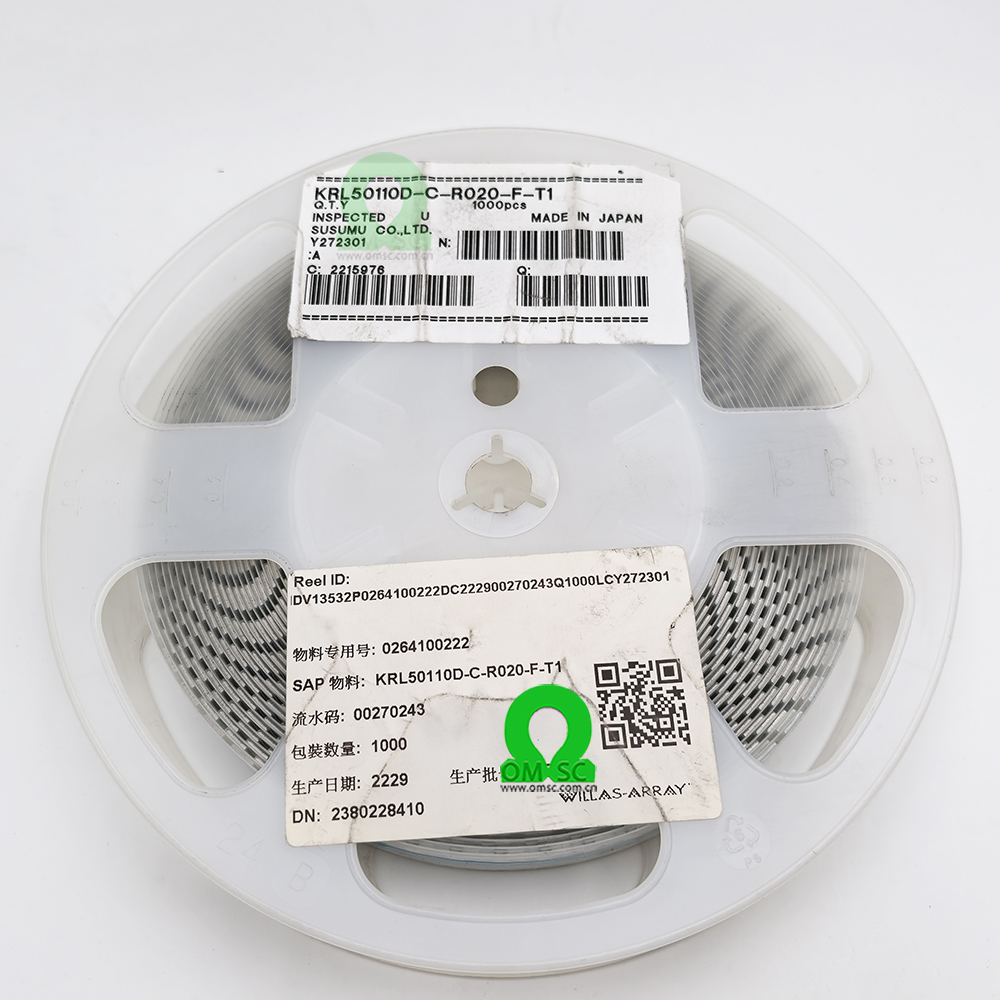

KRL50110D-C-R020-F-T1 1105 0.02Ω 1% 5W 50PPM 4320 20mR(inch:4320) AEC-Q200

符合车规标准

AEC-Q200 Compliant

特性:

大电流感应长边端子低电阻片式电阻器

有两种类型可供选择：高温（工作温度高达175°C）、低电动势

类型（工作温度高达155°C）

高电流处理能力和宽额定功率范围

尺寸：1608~15075，额定功率：0.5W~10W，电阻值范围：1m~500mΩ

面朝下施工。在仅底部或环绕式终端之间进行选择。

High current sensing long side terminal low resistance chip resistor Two types available: high temperature (operating temperature up to 175°C), low emf  type (operating temperature up to 155°C) High current handling capability and wide range of power ratings Size: 1608 ~ 15075, power ratings: 0.5W ~ 10W, resistance value range: 1m ~ 500mΩ Face down construction. Choice between bottom only or wrap around terminal.

应用:

汽车电子

电源设备、ACDC转换器、DCDC转换器

电机、逆变器、办公自动化设备

Applications

Automotive electronics Power source devises, ACDC converters, DCDC converters Motors, inverters, office automation equipment
